Cultural and Recreational Facilities

Ocean County College Theater, Fine Arts and Cultural Center Additions and Renovations

Toms River, NJ

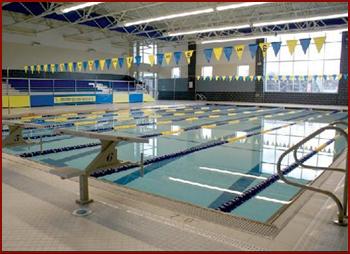

We provided structural services for the design and construction administration of a 12,000 SF Community Pool Facility to house a 6-lane competition pool at Lyndhurst High School.  The pool building measures approximately 100’ by 100’ and includes spectator bleachers, outdoor canopies and an outdoor ADA ramp with site retaining walls. The exterior walls were constructed of brick veneer and glazed CMU with internal insulation. The building features long span steel joists supported by steel beams and columns. The project also involved coordination with the pool consultant and design of holding tanks and equipment pits for the pool systems. The MPP design engineer was responsible for coordinating and recommending a coating system for the structural steel components able to withstand the high humidity and corrosive environment.







Community Pool at Lyndhurst High School

Lyndhurst, NJ

The project also included the design of a new entrance and entrance canopies to the adjacent school to provide multiple drop off locations and relieve traffic and congestion at the existing entrances.

Year of Completion: Phase I—2008, Phase II—2010

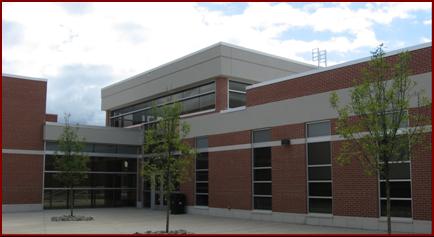

This 17,000 Square Feet,  addition  includes renovation of the existing theater, new dress rooms addition, new cultural center with an open lobby, faculty offices,  and art studios. The multiple level roof structure incorporates steel beams and open web steel joists supported by steel columns or load bearing CMU walls. The lateral force resisting system is comprised of steel concentric braced frames and CMU shear walls.

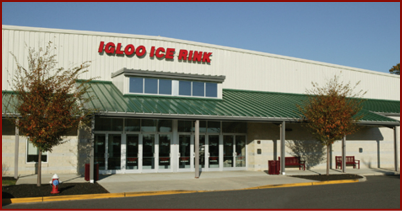

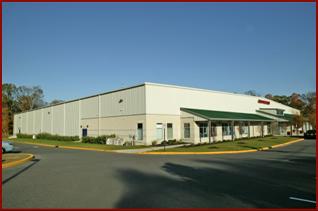

MPP’s professionals were responsible for the structural design of this new two-rink, 40,000 SF ice center which included a concession area, lockers, conference and multi-purpose rooms. The building was constructed as a hybrid system consisting of pre-engineered framing and some custom framed areas. The mechanical equipment was supported on a mezzanine located above the locker area. This facility was originally designed as a practice facility for the Philadelphia Flyers.

Mount Laurel Ice Center

Mount Laurel, NJ
